LED Area Lights & Flat Domes


LED Area Lights & Flat Domes by LUMIMAX®
For Machine Vision applications

LUMIMAX® LED area lights are for versatile use in all areas of Machine Vision for incident or backlight tasks. Their designs allow for any arrangement around the object to be inspected.

LED Area lights in the LG series are based on our LightGuide technology. State-of-the-art LightGuide technology guarantees the maximum degree of homogeneity and irradiance intensity over the entire light field. Variants with additional collimation accessories improve image contrast and minimise the glare effect at manual workstations. See in our  Video - Principle Collimated Backlight  Video the detailed principle of the collimated backlight.

The area lights of the LGCB series with a camera hole can also be used as a flat dome within a reflected light application and thus create a full-area, shadow-free illumination of the test object.

With the lightings of the BASIC series even price-sensititve applications can be reliably implemented.The focus here is on the realization of essential functions at high quality. A smart and lightweight design ease the integration in confined or moving machine vision systems.

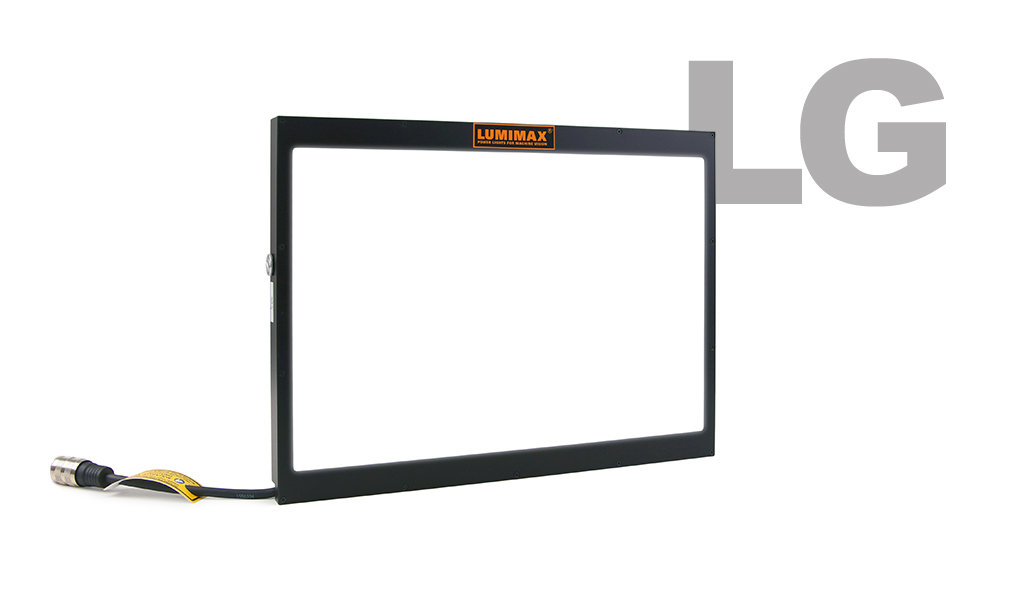

Homogeneous Area Lights with LightGuide Technology

Homogeneous Area Lights with LightGuide Technology
  • From 100 x 100 mm to 400 x 300 mm
  • Homogeneity through lateral
    light injection
  • Highly diffuse (DL) oder collimated (KOL) lighting

more info

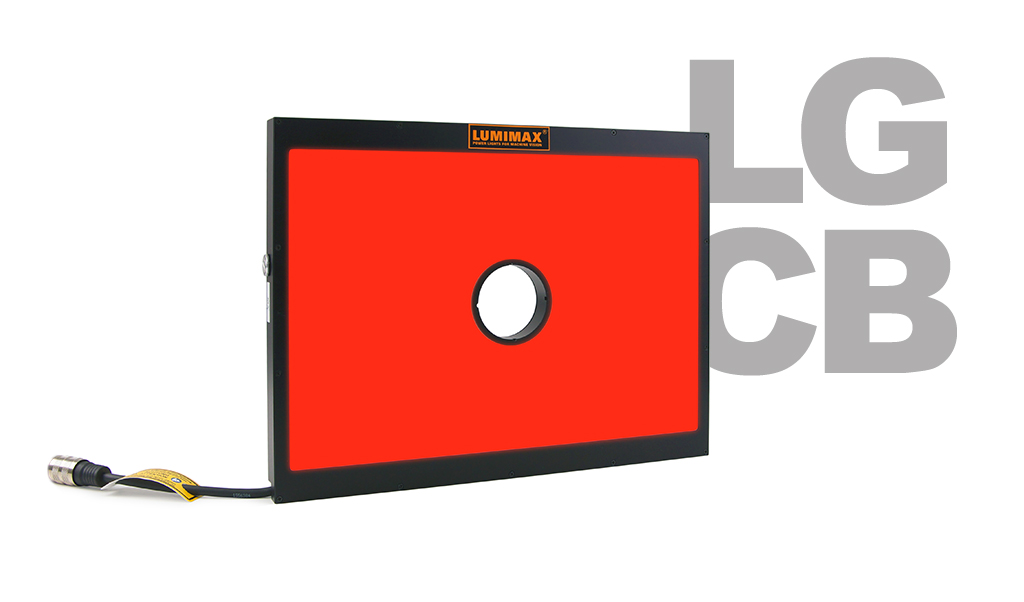

Flat Dome Lights with LightGuide Technology

Flat Dome Lights with LightGuide Technology
  • From 200 x 200 mm to 400 x 300 mm
  • Homogeneity through lateral light injection
  • Mounting on the camera side
  • Highly diffuse (DL) or collimated (KOL) lighting
more info

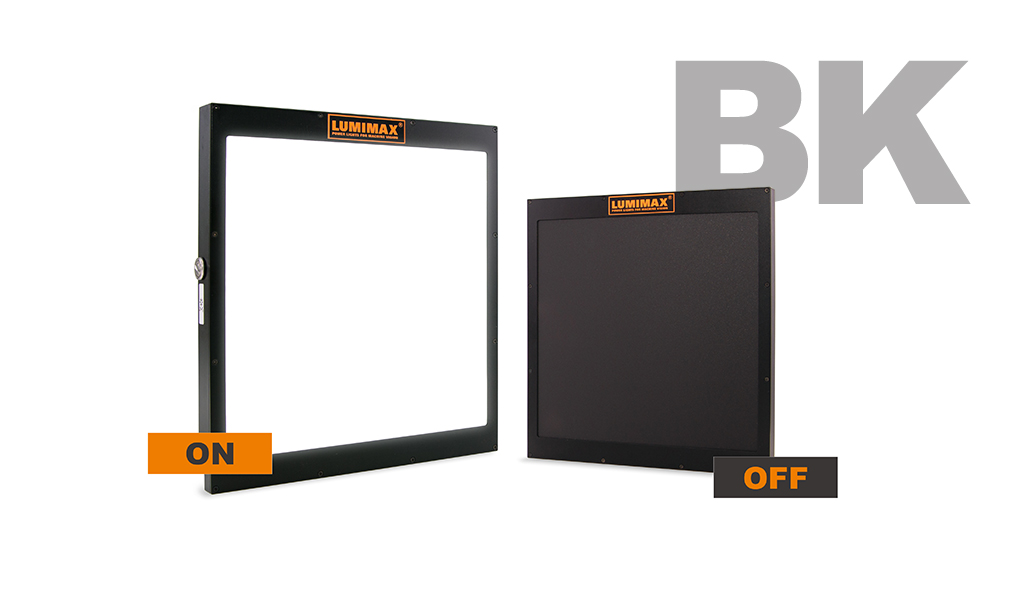

BLACK series for combined applications

BLACK series for combined applications
  • From 100 x 100 mm to 400 x 300 mm
  • Highly diffuse backlight through LightGuide Technology
  • Black light area (BK) when switched off as low-reflecting background for reflected-light applications
more info

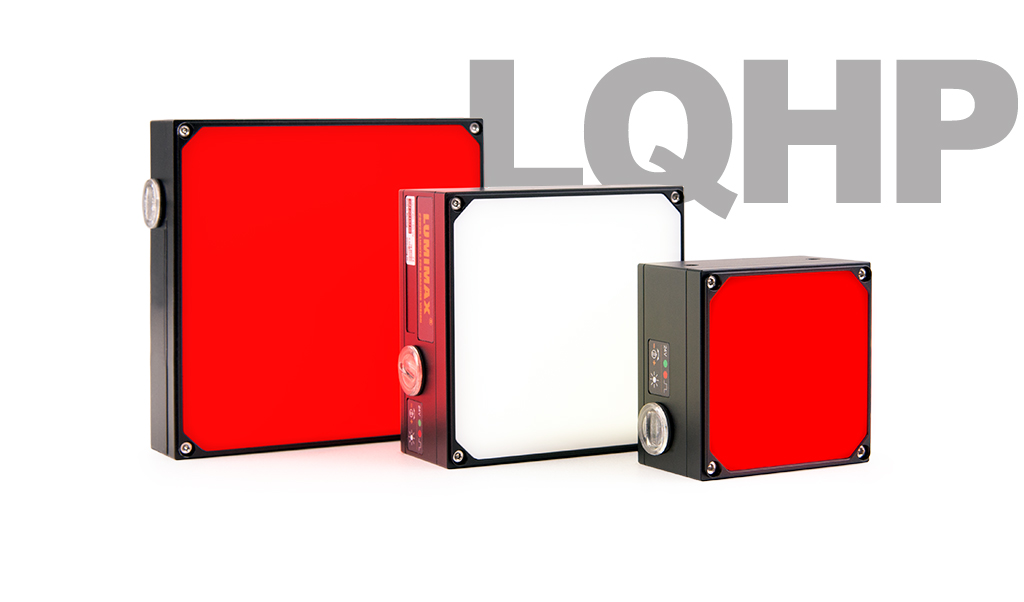

Flexible High Performance Lights

Flexible High Performance Lights
  • From 40 x 40 mm to 80 x 80 mm
  • Light output up to 5 million lux
  • Flexible adjustment through
    versatile accessories
  • Highly diffuse (DL) or collimated (KOL) lighting

more info

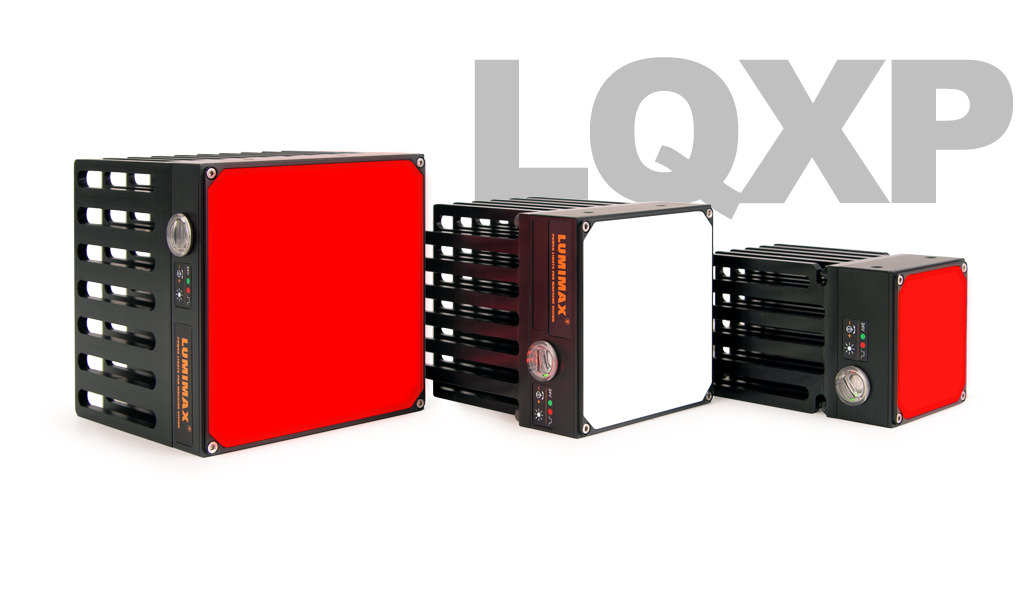

Area Lights for Extreme Performance

Area Lights for Extreme Performance
  • From 40 x 40 mm to 80 x 80 mm
  • Cooling element for double
    brightness increase
  • Flexible adjustment through
    versatile accessories
  • Highly diffuse (DL) or collimated (KOL) lighting
more info

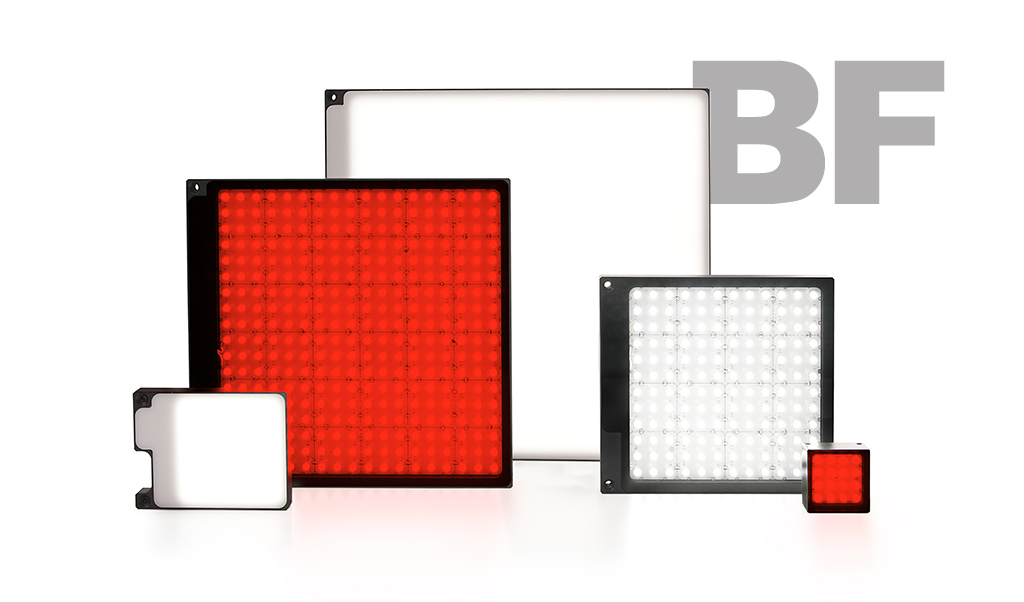

Compact BASIC Area Lights

Compact BASIC Area Lights
  • From 25 x 25 mm to 200 x 200 mm
  • For price-sensitive applications
  • Lightweight housing design
  • Directed (30°) or highly diffuse (DL) lighting
more info

Product configurator

Your size selection
By selecting the following product properties you can configure your desired lighting.
Type
Light area (mm)
Light colour
blue
green
red
IR*
white
Light direction*
Operation mode
continuous / switch
strobe*
strobe (ext. contr.*)
Flash time
100 µs
220 µs
750 µs
Please first make your product selection in the upper overview!
* Explanations
IR - Infrarot 850nm | 870nm
Strobe mode - more information
Light direction - more information

Machine Vision Challenge?

We bring in 20+ years of expertise to find YOUR solution.

With years of experience in developing machine vision lighting, we are your partner for sophisticated custom solutions. Do you have a challenge? By sending us your inquiry, you’ve taken the first step toward finding the optimal lighting solution for your machine vision application.

Contact us
