LED Ring Lights


LED Ring Lights by LUMIMAX®
For Machine Vision applications

LUMIMAX® LED Ring Lights are ideal for the uniform illumination of flat, matte and reflective surfaces. A range of different sizes and performance classes of the LED ring light provide the optimum illumination for every application.

Lens exchange options, diffusers, Fresnel lenses and polarisation filters allow the optimisation of the radiation characteristic to the required inspection task – even at working distances of several meters. Calculate the optimal illumination area of the LR-series Ring Lights for your application easily and simply with the help of our practical tool.

Direct mounting on the camera or lens using optional accessories simplifies integration of the LED Ring Lights into Machine Vision systems.

With the LED Ring Lights of the BASIC series even price-sensititve applications can be reliably implemented.The focus here is on the realization of essential functions at high quality. A smart and lightweight design ease the integration in confined or moving machine vision systems.

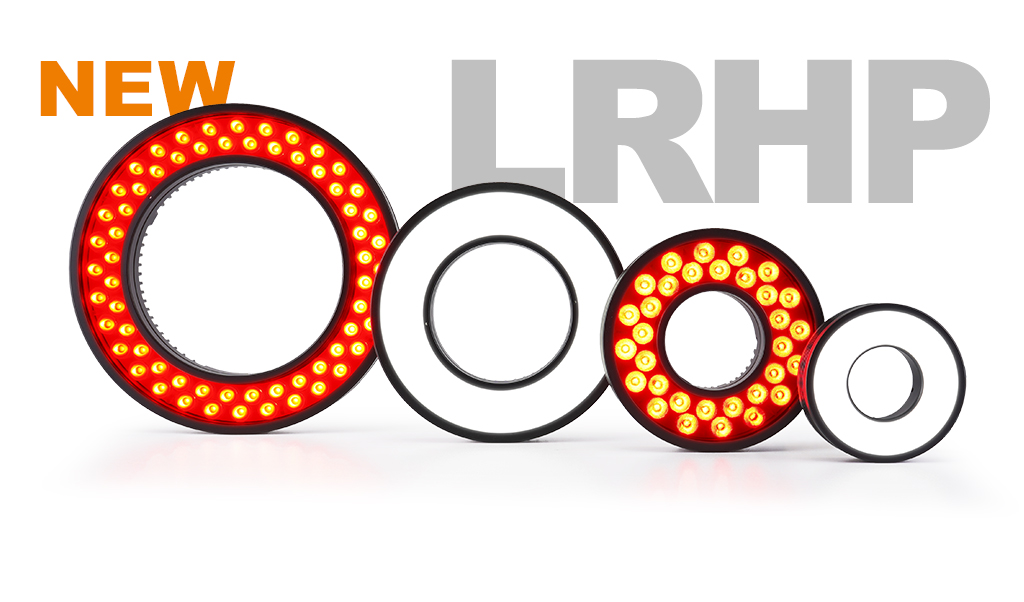

High Performance Ring Lights

High Performance Ring Lights
  • Inner diameters from 46 mm to 160 mm
  • Multi-row LED arrangement for wide lighting without visible hot spots
  • Light output up to 2 Mio. lux
  • Versatile accessories for flexible adjustment and mounting on the lens
more info

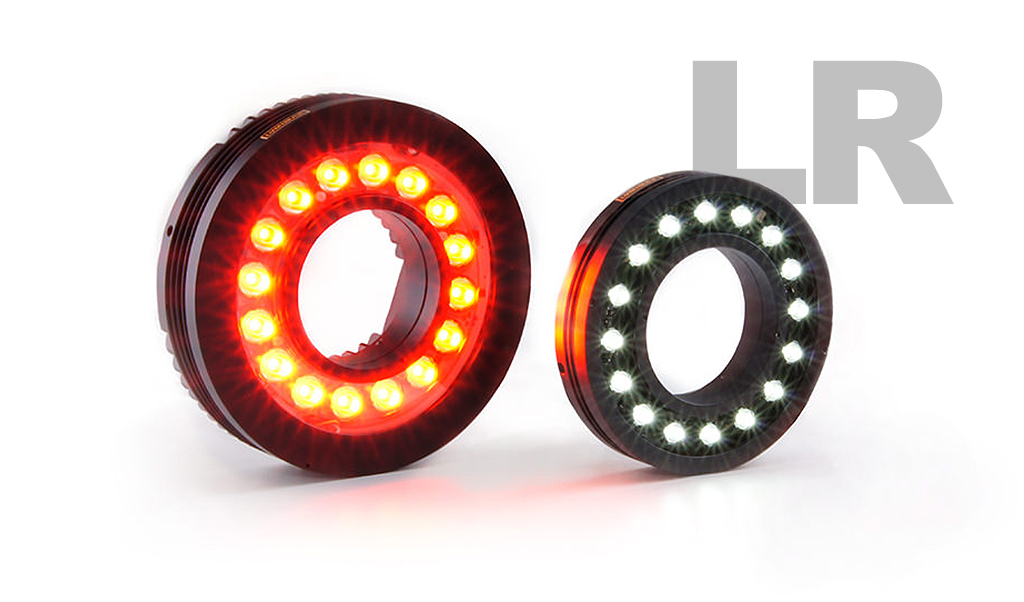

High Power Ring Lights

High Power Ring Lights
  • Inner diameter 66 mm
  • Fluorescence applications in UV365 nm and UV395 nm
  • Versatile accessories for flexible adjustment and
    mounting on lens
more info

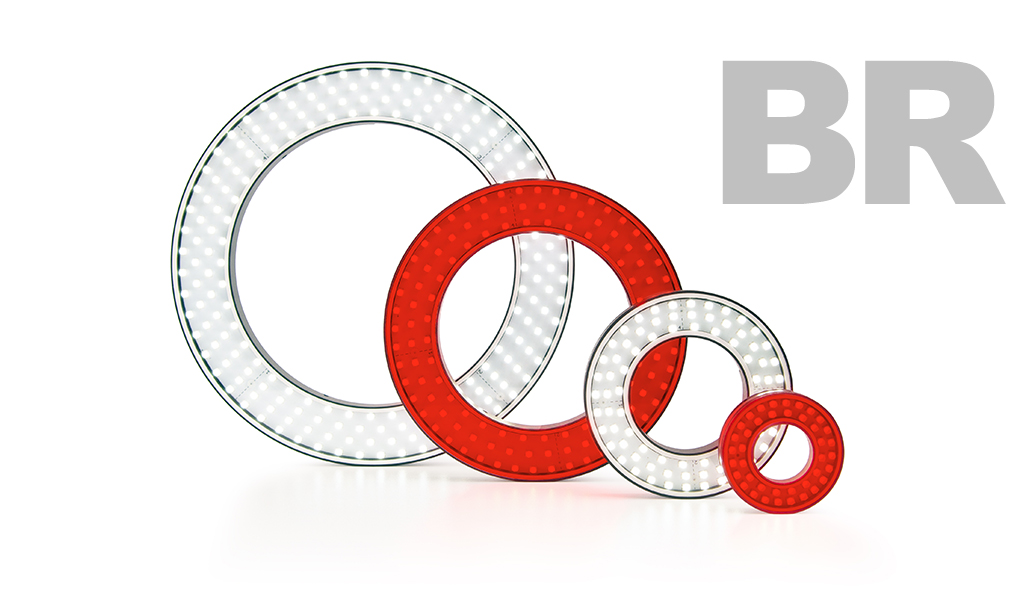

Compact BASIC Ring Lights

Compact BASIC Ring Lights
  • Inner diameters from 24 mm to 140 mm
  • For price-sensitive applications
  • Lightweight housing design
  • All sizes can be assembled to form a wide light area ring
more info

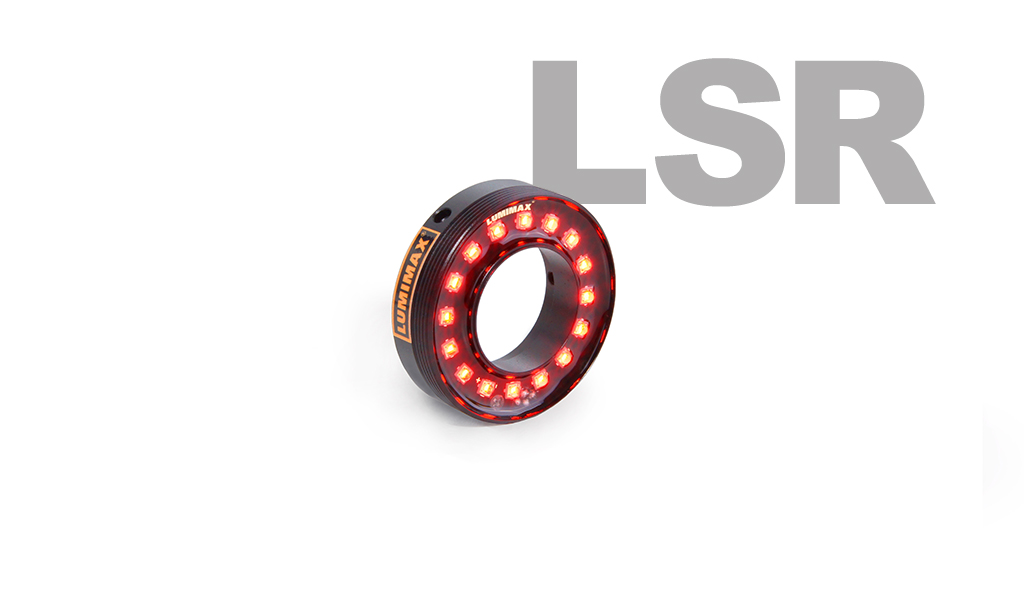

Miniature Ring Lights

Miniature Ring Lights
  • Inner diameter 24 mm
  • Lightweight housing design
  • Versatile accessories for flexible adjustment and
    mounting on lens
  • Strobe mode with external controller FLC1
more info

Product configurator

Your size selection
By selecting the following product properties you can configure your desired lighting.
Type
inner | outer Ø (mm)
Light colour
UV365
UV395
blue
green
red
IR*
white
Light direction*
Operation mode
continuous / switch
strobe*
strobe (ext. contr.*)
Flash time
100 µs
220 µs
750 µs
Please first make your product selection in the upper overview!
* Explanations
IR - Infrarot 850nm | 870nm
Operation mode flash or external controller (ext. contr.) - more information
Light direction - more information
