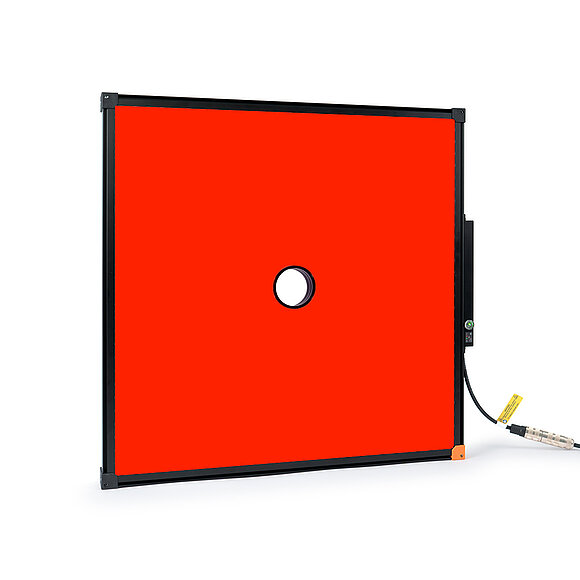

Modular LUMIMAX® LED Lights - For Machine Vision applications
The new modular LUMIMAX® LED Panel Lights expand the lighting portfolio with larger light areas. Thanks to the modular concept, specific sizes can be realized quickly and without additional development costs. The Panel Lights with integrated controller technology are available in different configurations for incident and backlight applications.
Further information and ML in practice

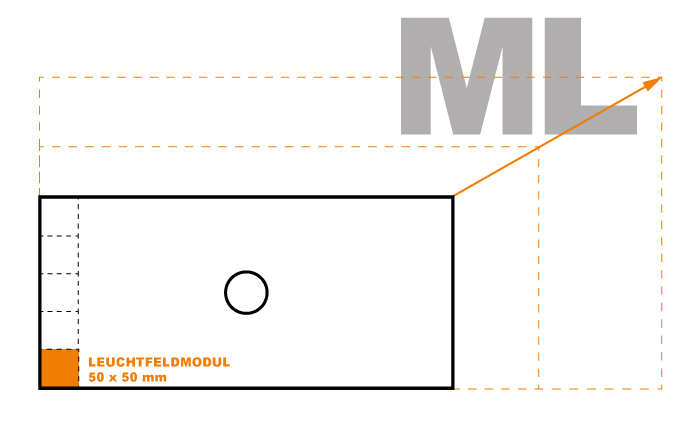

Modular lighting geometry
- Large surface lighting with dimensions from 50 mm x 250 mm
- Rectangular, square and elongated design in 50 x 50 mm light field modules freely definable depending on requirements
- Lighting solution individually adapted to the application from the cost-optimized standard portfolio
Our modular Lights are available in the following standard wavelengths:
Red (625 nm)
Infrared (850 nm)
White (5700 K)
If a different wavelength is required for your application, we will be glad to help you.
Typische Anwendungen
Homogeneous, highly diffuse Area Lighting predestined for backlight applications
Powerful illumination of large test areas and at large working distances as incident light
The camera hole is available in three sizes and is positioned in the middle as standard. The number and position can be individually designed to meet your requirements.
Free diameter 35 mm
Free diameter 50 mm
Free diameter 75 mm
All Modular Area Lights of the ML series have an integrated or housing-mounted lighting controller. LUMIMAX® inside controller technology is available in continuous/switch or flash modes and offers you
- Easy, quick and safe commissioning
- Stable, reproducible lighting conditions
- Opto-decoupled TTL and SPS signals for synchronized and precise lighting triggering
- Easy integration into Machine Vision systems
Continuous and switch mode
- For applications with image acquisition times of 1 ms and more
- Inspection of endless materials such as web goods, tubular bags, etc.
- Continuous operation at manual workstations
Strobe mode
- Detailed imaging of moving test parts without motion blur
- Elimination of interfering light sources such as skylights, machine lighting or direct sunlight
- High production speed up to a cycle time of 100 parts per second
- Quality control during movement
- LUMIMAX® standard connection cable with industrial M16 12-pin plug
- Drag chain and conditionally robot-compatible
- Available in different lengths between 1 m and 30 m
- Circumferential groove profile (groove size 5) in the edge strip
- Corner fixation by means of through hole with M4 thread

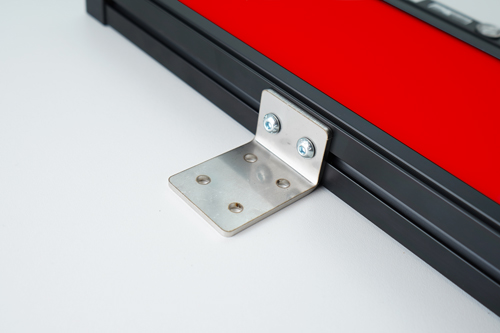

- Mounting bracket for surface mounting
The ML series can be easily and quickly adapted to customer-specific requirements. Please do not hesitate to contact our team – we would be happy to work with you to develop a customised solution that meets your requirements.

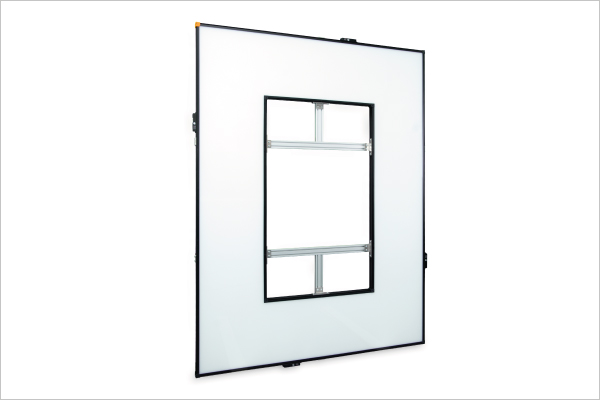

Individual dimensions and geometries
- Rectangular camera view
- L and U shape

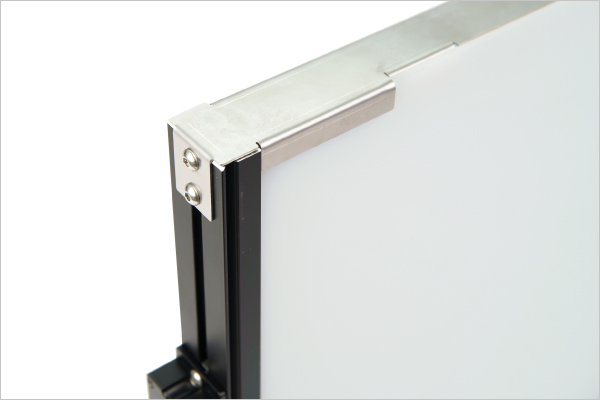

Compact mechanical design
- One-sided or two-sided narrow border

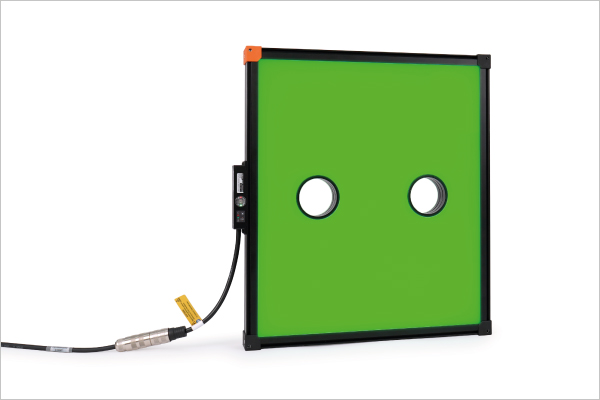

Freely definable camera hole
- Number
- Position
Adjusting the lighting
- Clear screen
- Satin screen
- Highly diffused screen
- Collimation foil

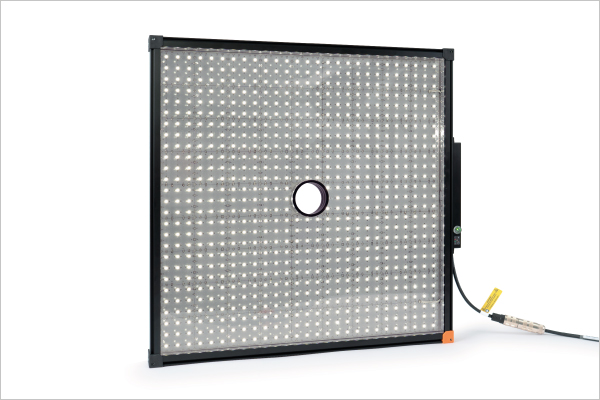

- Polarizing filter (see picture)
- Check and line pattern
